3D PRINTING IN ACTION

Let us show you the process of 3D printing on an actual example – the printing of 155 different shaped, coloured and sized components of Magnes II, the modular seating system by a company BN Office Solution.



BEFORE THE 3D PRINT

Before the actual print, we usually model the components in a special graphic software. This time we could skip the step thanks to BN Office Solution, which had already provided us with digital 3D models of their product.



magnes components



PREPARATION

The only thing we had to do was to check the quality of the 3D data, correct them if necessary, resize and assemble them in a 3D printing software and click on the “PRINT” button.



3D printing software



PROCESS OF 3D PRINTING

3D printing takes time depending on the size, the detail or the number of the models which are to be printed. The printing is carried out by gradually layering materials – gypsum powder and colourful resin-based adhesives – until the model is finished.



3D printing in action



FINALIZATION

After six hours, Magnes II miniatures were ready to be taken out of the powder, cleaned, finalized (superglued) and dried.



powder 3D printing

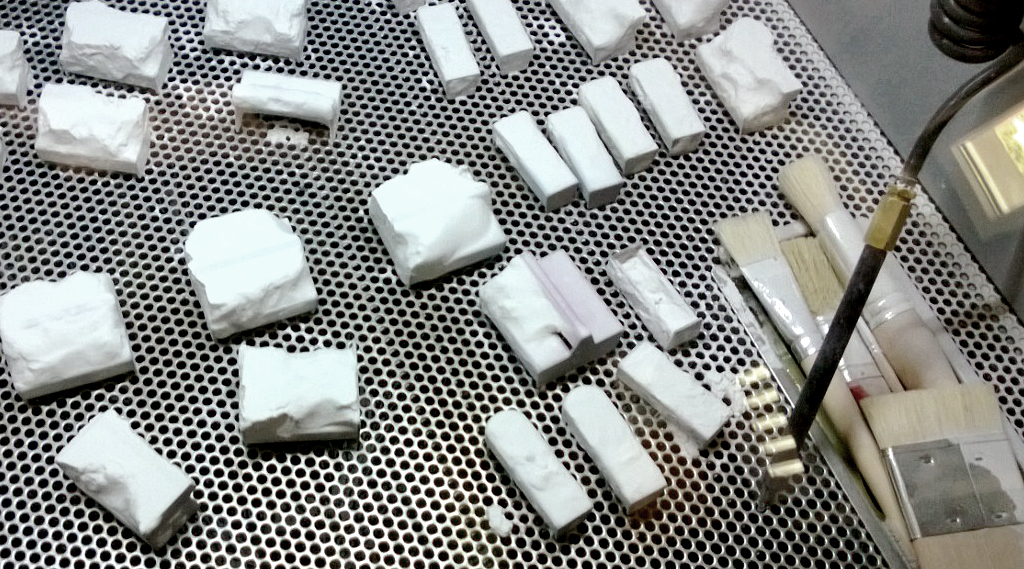

3D printed before cleaning

3D printed and glued models



AFTER THE 3D PRINT

Voilà. After the finalization, the objects are ready to be used for whichever purpose – marketing, decoration, education, science, development, prototyping, etc.

It is no coincidence that 3D printing is originally known as “rapid prototyping”, because the whole process takes very short time.



3D printed magnes
